YUNTONG (TIANJIN) INDUSTRIAL CO.,LTD

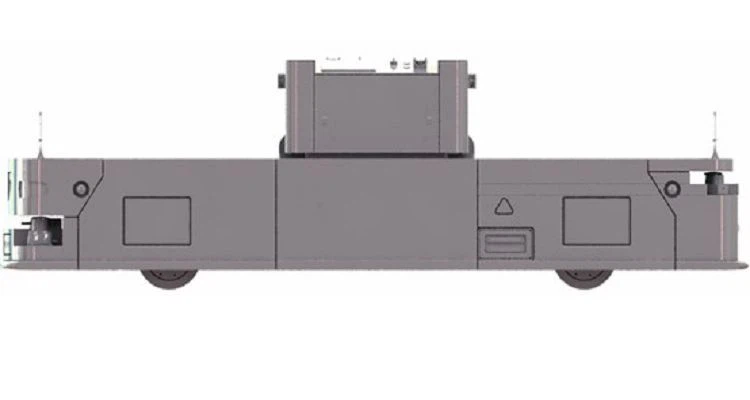

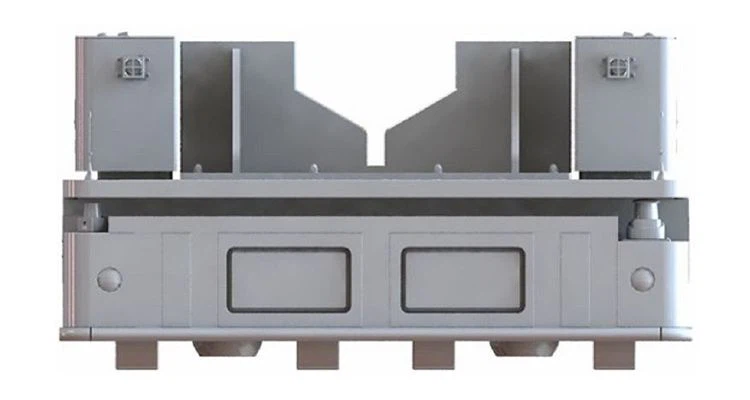

Port Transport AGVs
PRODUCT PARAMETERS
Description
Used for the transportation of excavator chassis in the construction machinery industry; supports the transportation of material racks with support legs, without limitations on product types or industries. The material rack dimensions are too narrow, but the AGV can stealthily enter the bottom of the material rack and lift it for transportation; the dimensions of the material rack match the dimensions of the AGV. It features a dual-drive structure, with hydraulic cylinder lifting (preferably quad-drive when size allows).
| Product Name | Port Transport AGVs |
| Model Number | LY-AK-10T-10B |
| Product Weight | bicycle 10T |
| Load Weight | 10T |
| Product Size | L3000*W1600*H1000mm |
| Drive Unit Type | Superdrive |
| Drive Unit Number | 4-Drive 8-Wheels |
| Drive Unit Load Weight | 5T |
| Remote Control | Manual Remote + Automatic Operation |
| Navigation Type | Magnetic Stripe |
| Lift Ability | No |
| Castor | 0 |
| Linkage Mode | Single AGV |
| Frame Structure | Board |
| Suspension Type | Hydraulic |
| Turning Radius | 850mm |
| Voltage | 48V |
| Range/Battery | 120AH(Customized Available) |
| Fixture/Tooling | Overall Lift |
| Explosion-proof level | / |
| Explosion-proof or not | / |
FAQs
How are these AGVs powered?
Do these AGVs require any additional infrastructure or modifications to a facility?
What industries are most likely to utilize Overweight Parts Trans AGVs?
How do these AGVs impact overall logistics efficiency?
What kind of safety features do these AGVs have?
